Product
M141MN/5
| Connector: | 4 Poles + Ground 1 Way IN + 1 Way OUT |
| Connecting devices with IP protection grade: | IP68 |
| Rated voltage: | 450V |
| Rated current: | 32A |
| Working temperature: | T -40°C + 125°C |
| Type of clamps for the cables connection: | bush + screw clamps |
| Clamps connecting capacity: | 0.50 ÷ 2.50 mm² |
| Cables diameter: | 7.0 ÷ 12.0 mm |
| Overvoltage category: | II |
| Pollution degree: | II |
| Protection grade: | IP68 |
| In conformity to the standards: | EN 60998-1 / EN60998-2-1 / EN60529-1 / EN60335 |
| Approval marks: | ENEC 03 |
| Body: | PA66 |

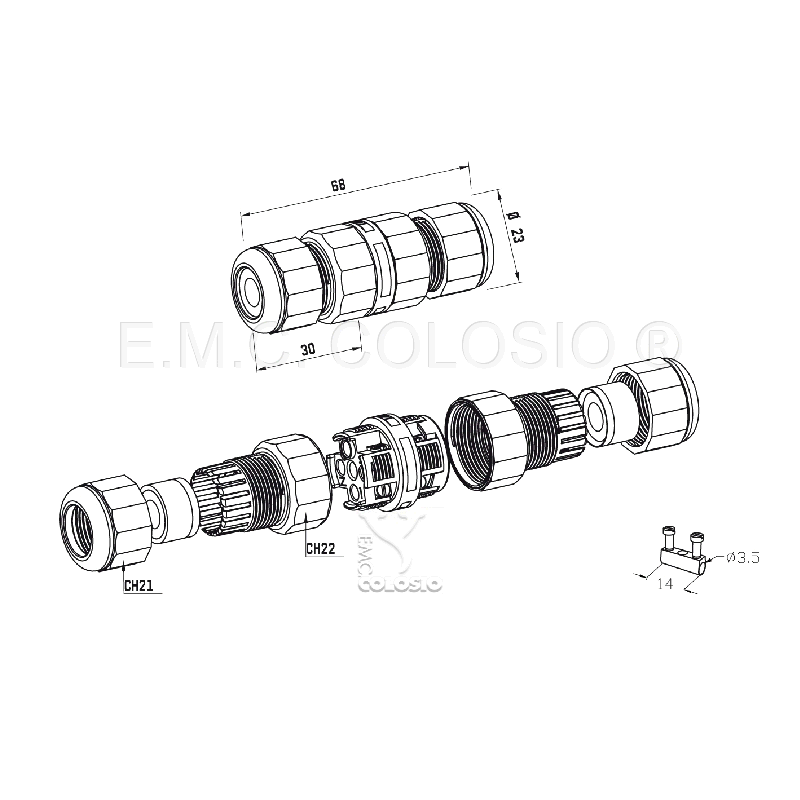

| IP68 WATERTIGHT CLAMP CONNECTION DEVICE SOCKET + PLUG WITH 4 POLES + GROUND | |
