Référence
M139MN--/3
| Connection: | 2 Pôles + Terre 1 Way IN + 2 Ways OUT |
| Dispositif de connection avec IP: | IP68 |
| Tension nominale: | 450V |
| Courant nominal: | 25A |
| Température de fonctionnement: | T -40°C + 125°C |
| Connexion des câbles | bornes à vis |
| Capacité de connexion pour sections de XX à XX mm² | 0.50 ÷ 4.00 mm² |
| Diamètre de les câbles: | 7.0 ÷ 13.0 mm |
| Surtension categorie: | II |
| Degré de pollution: | II |
| Degré de protection: | IP68 |
| Conforme aux normes: | EN 60998-1 / EN60998-2-1 / EN60529-1 / EN60335 |
| Marques de conformité: | ENEC 03 |
| Corps: | PA66 |

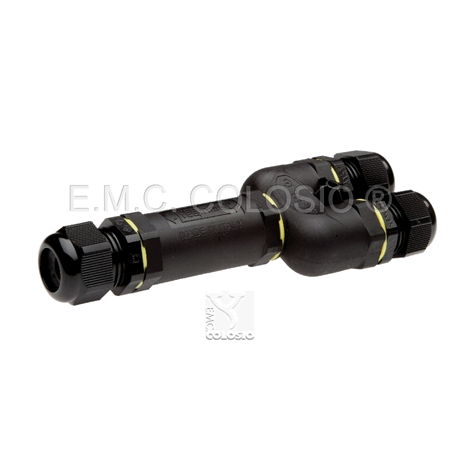

| IP68 WATERTIGHT CLAMP CONNECTION DEVICE WITH 2 POLES + GROUND 1 WAY IN 1 WAY OUT (M139MNAA/3: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBA/3: VERSION WITH LINE IN GLAND FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT AND LINES OUT GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBB/3: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT) | |
| Reach: 7792a36c-0519-45b0-8dfd-6bf309c5b14c | |
