1 Way IN + 2 Ways OUT

两位+地线 1 Way IN + 2 Ways OUT M139MN--/3

样式 M139MN--/3

M139MN--/3

连接器类型	两位+地线 1 Way IN + 2 Ways OUT
带IP防护等级的连接设备	IP68
额定电压	450V
额定电流	25A
灯座的工作温度	T -40°C + 125°C
电线连接处的夹具类型	套管+螺旋夹具
夹具连接能力	0.50 ÷ 4.00 mm²
电线直径	7.0 ÷ 13.0 mm
过压保护：	II
污染等级	II
防护等级	IP68
与标准一致	EN 60998-1 / EN60998-2-1 / EN60529-1 / EN60335
认证标志	ENEC 03
灯体	PA66

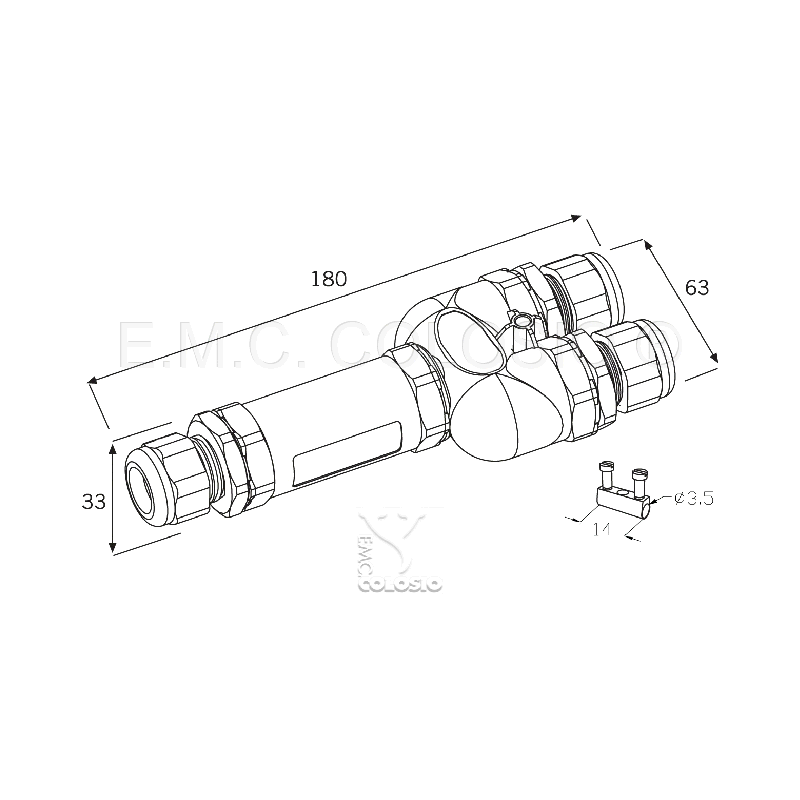

IP68 WATERTIGHT CLAMP CONNECTION DEVICE WITH 2 POLES + GROUND 1 WAY IN 1 WAY OUT (M139MNAA/3: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBA/3: VERSION WITH LINE IN GLAND FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT AND LINES OUT GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBB/3: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT)
