> Cables>multi-conductor 250V>PVC + PVC RF---

multi-conductor 250V

PVC + PVC RF---

PVC + PVC RF---

Product

RF---

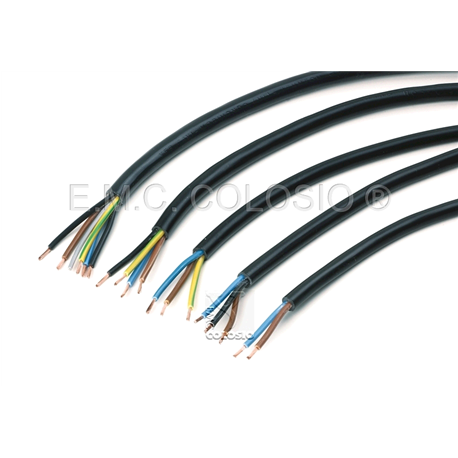

Type of cable insulation: PVC + PVC multi-conductor 250V
Working temperature of the sheath:T90°C
Working temperature inner cores:T90°C
Type of strand:Copper red flexible
Working voltage:300/500V
Classification:H05V2V2-F
Approval marks:IMQ HAR



CodeSections / AWG:Colours of the coresDiameters / Dimensions (mm):
RF27-2 x 0.75 mm²LM6.3 ::RF27-::
RF21-2 x 1.00 mm²LM6.6 ::RF21-::
RF25-2 x 1.50 mm²LM7.6 ::RF25-::
RFP7-2 x 0.75 mm²LM6.3 x 4.05 ::RFP7-::
RFP1-2 x 1.00 mm²LM6.6 x 4.1 ::RFP1-::
RF37-3 x 0.75 mm²LMG6.7 ::RF37-::
RF31-3 x 1.00 mm²LMG7.0 ::RF31-::
RF35-3 x 1.50 mm²LMG8.3 ::RF35-::
RFT7-3 x 0.75 mm²LMN6.7 ::RFT7-::
RFT1-3 x 1.00 mm²LMN7.0 ::RFT1-::
RF47-4 x 0.75 mm²LMNG7.3 ::RF47-::
RF41-4 x 1.00 mm²LMNG7.9 ::RF41-::
RF45-4 x 1.50 mm²LMNG9.3 ::RF45-::
RFQ7-4 x 0.75 mm²LMNE7.3 ::RFQ7-::
RFQ1-4 x 1.00 mm²LMNE7.9 ::RFQ1-::
RFQ5-4 x 1.50 mm²LMNE9.3 ::RFQ5-::
RF57-5 x 0.75 mm²LMNEG8.2 ::RF57-::
RF51-5 x 1.00 mm²LMNEG8.6 ::RF51-::
RF55-5 x 1.50 mm²LMNEG10.4 ::RF55-::
RFC7--5 x 0.75 mm²LMNER8.2 ::RFC7--::
RFC1-5 x 1.00 mm²LMNER8.6 ::RFC1-::
RFC5-5 x 1.50 mm²LMNER10.4 ::RFC5-::
RF77-7 x 0.75 mm²LMNERBG8.8 ::RF77-::
RF71-7 x 1.00 mm²LMNERBG10.0 ::RF71-::
RF75-7 x 1.50 mm²LMNERBG11.2 ::RF75-::

Available colours:

  • B - White
  • N - Black
  • E - Grey
  • Other colours on request

Colours of the cores

L = Blue
M = Brown
G = Yellow/Green
N = Black
E = Grey
R = Red
B = White
